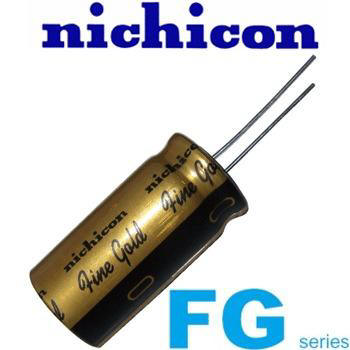

Nichicon`s FG or "Fine Gold" acoustic series are suited for high grade audio equipment, using state of the art etching techniques. Rich sound in the bass register and clearer high end, superb performance.
Technical specifications:
- Body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 6.3 to 100V
- Rated Capacitance Range: 0.1 to 10000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_______________________________________________________________________

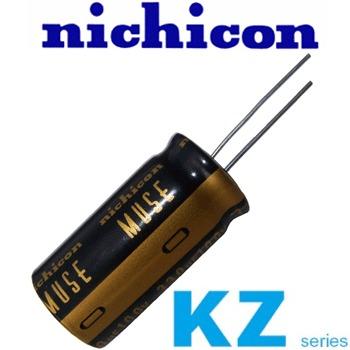

The Nichicon Muse KZ type electrolyitc are Nichicon`s premium grade type, specifically designed for audio. Reasonably priced and incredibly popular in the DIY community, a great alternative from Black Gate and Elnas.
- body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 25 to 100V
- Rated Capacitance Range: 10 to 1000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_______________________________________________________________________

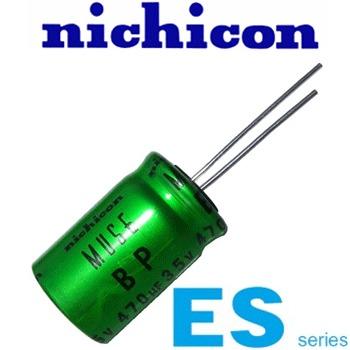

Nichicon`s range of Bi-polar "MUSE" acoustic series electrolytic capacitors. Suited for audio signal circuits.
Technical specifications:
- Body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 6.3 to 50V
- Rated Capacitance Range: 0.47 to 1000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

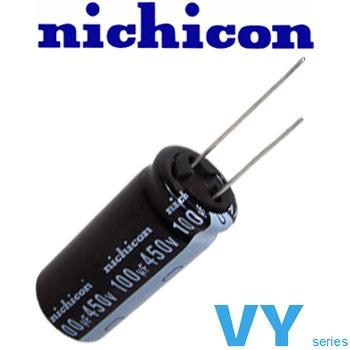

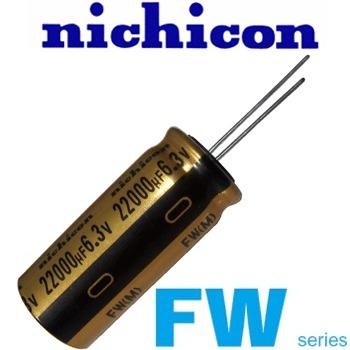

Nichicon`s range of standard electrolytics designed for Audio - Low distortion, mechanically damped, designed for audio, superb sonics at very reasonable cost. Polar electrolytic capacitors.
Technical specifications:
- Body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 6.3 to 100V
- Rated Capacitance Range: 0.1 to 33000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

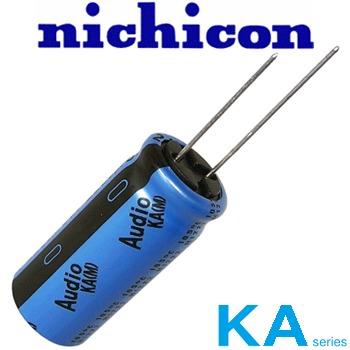

Nichicon's KA Series Aluminum Electrolytic Capacitor was designed as a higher-grade 105ºC capacitor capable of achieving higher sound quality in audio devices than Nichicon's standard 105ºC-resistant KT Series. KA Series capacitors from Nichicon are constructed with select materials to create superior acoustic sound.
Technical specifications:
- Body type: Radial, lead out
- Category Temperature Range: –55 to +105°C
- Rated Voltage Range: 6.3 to 50V
- Rated Capacitance Range: 22uF to 22000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

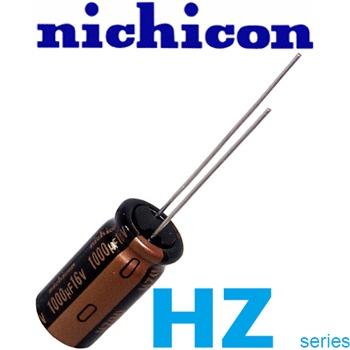

Nichicon`s range of ultra low impedance, high operating voltage electrolytic capacitors. Suited for audio signal circuits, power supply capacitors in high temperature situations.
Technical specifications:
- body type: Radial
- Category Temperature Range: –25 to +105°C
- Rated Voltage Range: 6.3 to 16V
- Rated Capacitance Range: 470uF to 3300µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

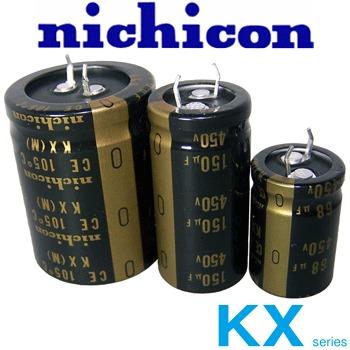

Snap-in Terminal Type, For Audio Equipment. Great for power supply upgrades.
Technical specifications:
- Body type: Radial, snap in
- Category Temperature Range: –40 to +105°C (250V), –25 to +105°C (450V)
- Rated Voltage Range: 250 to 450V
- Rated Capacitance Range: 68uF to 1000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

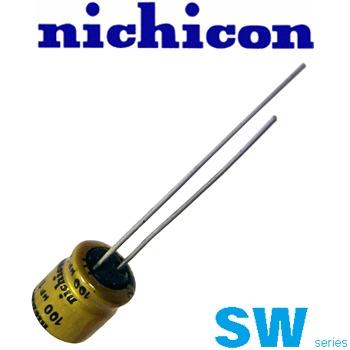

Nichicon's SW Series Aluminum Electrolytic Capacitor was designed as their acoustic range, all have a height of 7mm.
Technical specifications:
- Body type: Radial, lead out
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 6.3 to 50V
- Rated Capacitance Range: 0.1uF to 220µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

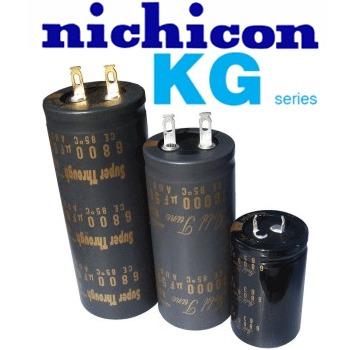

Designed for high-grade audio equipment, giving priority to high fidelity sound quality. Suitable for power supplies, excellent performance, and long life.
There are 4 types available:
Gold Tune, Snap-in: The low profile, high tone quality grade of the new development electrolyte adoption.
Gold Tune, Solder Lug: The center grade that the best sound is provided electrode foil, with the multiple-use.
Super Through, Solder Lug: The highest tone quality grade by the low drag the gold plating terminal adoption.
Technical specifications:
- Body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 16V to 100V (Gold Tune), 16V to 100V (Super Through)
- Rated Capacitance Range: 680uF to 33000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________
Designed for high-grade audio equipment, giving priority to high fidelity sound quality. Suitable for power supplies, excellent performance, and long life.
There are 4 types available:
Gold Tune, Snap-in: The low profile, high tone quality grade of the new development electrolyte adoption.
Gold Tune, Solder Lug: The center grade that the best sound is provided electrode foil, with the multiple-use.
Super Through, Solder Lug: The highest tone quality grade by the low drag the gold plating terminal adoption.
Technical specifications:
- Body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 16V to 100V (Gold Tune), 16V to 100V (Super Through)
- Rated Capacitance Range: 680uF to 33000µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
_____________________________________________________________________

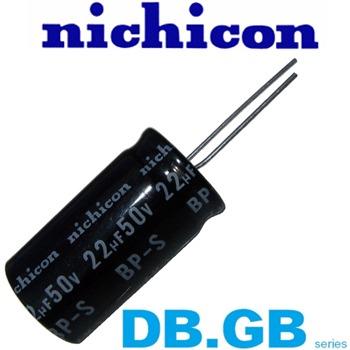

Nichicon`s range of Bi-polar electrolytic capacitors designed specifically for loudspeaker crossovers. Offering a great performance.
Technical specifications:
- Body type: Radial
- Category Temperature Range: –40 to +85°C
- Rated Voltage Range: 50V
- Rated Capacitance Range: 1 to 68µF
- Capacitance Tolerance: (DB type) ±20% at 120Hz, 20°C, (GB type)±10% at 1kHz
